CardioCoach
Simple & Accurate VO₂ Max Testing
CardioCoach™
- VO₂ Max and Sub Max
- AT , AeT, Peak VO₂
- Precise Target Heart Rates
- Calories Burned During Exercise
The CardioCoach delivers simple and accurate fitness testing based on oxygen consumption. This data can be used as the foundation for customized exercise programs that truly meet the needs of the individual. It is so simple to use that any of your current employees can perform a VO₂ Max test. It is affordable, allowing even small gyms, personal trainers and educators to own state of the art VO₂ Max test equipment. To download a CardioCoach product brochure, click here.
Why Choose CardioCoach?
Mixing chamber Technology
A mixing chamber is considered the “Gold Standard” for VO₂ Max measurements.In the past, this system has been complicated and expensive, making it only practical to train professional athletes and for use in research departments. KORR’s advancements in technology make this equipment feasible for gym owners and trainers at any level of expertise to own.
Self Calibrating
Adjustments for barometric pressure, temperature, and humidity are key to an accurate VO₂ measurement. The CardioCoach measures these parameters during each routine calibration cycle, then automatically compensates to standard (STPD) conditions.
Simple
The CardioCoach has a simple user interface with wireless connections. No training or certification is necessary.
Workout Zones

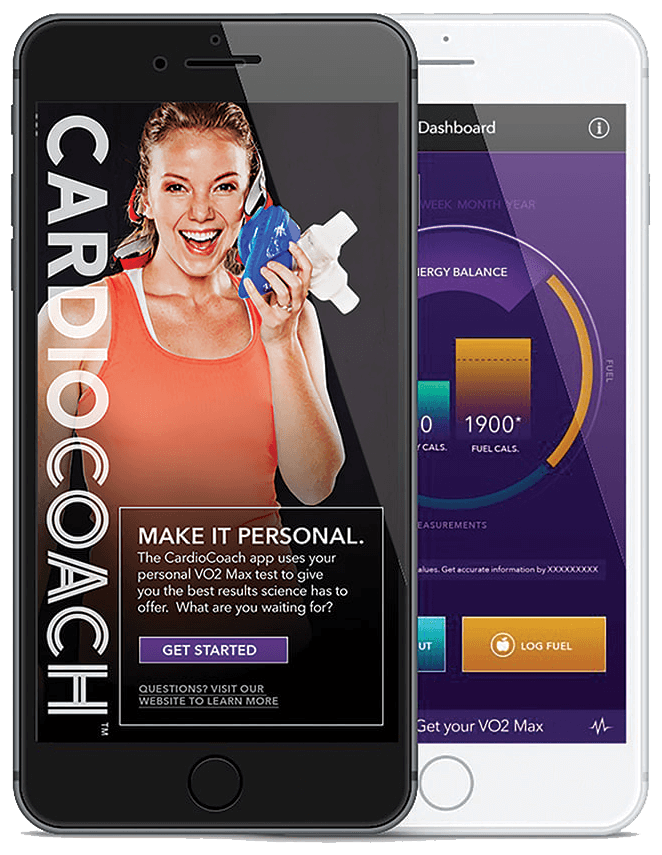

CardioCoach uses Anaerobic Threshold and VO2 Max results to define workouts zones unique to each client. These results can be uploaded to the CardioCoach app to guide your client through workouts for cardio-strengthening, endurance, weight loss or other goals custom designed by you.
Service
Routine replacement of the oxygen sensor is required but can be performed on site by your own staff.
Accurate
The CardioCoach has been independently validated at the University of Southern California and Oregon State University. To view those results, click here.

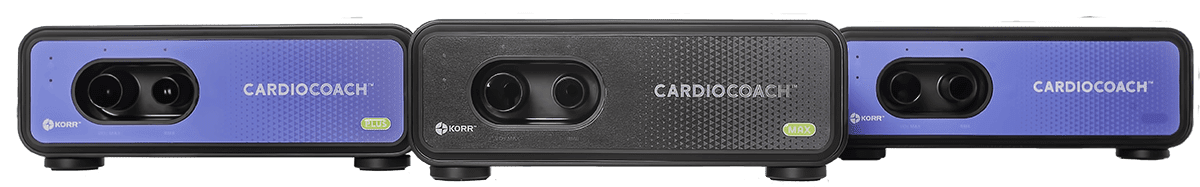

KORR offers 4 different CardioCoach models
Multiple options allow you to select the model that best meets your needs.
The CardioCoach is all about simplicity. Simplicity of operation means any trainer can learn to perform a test in minutes. Simplicity of the reports means customers receive easy to understand results that define unique workout zones for endurance, weight loss, and cardio strengthening.

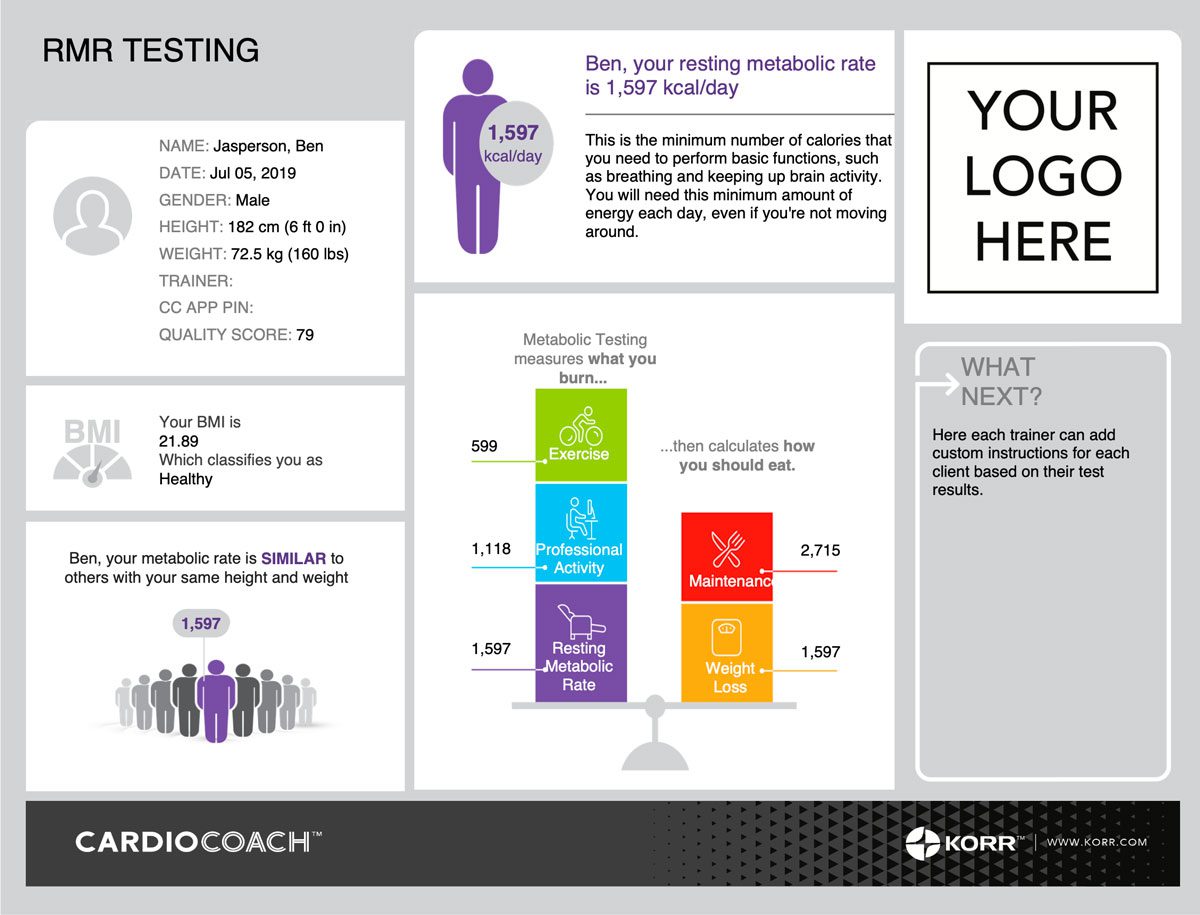

The CardioCoach PLUS combines the features of VO₂ fitness testing with Resting Metabolic Rate (RMR) Measurement. An RMR measurement uses oxygen consumed at rest to determine a person’s caloric requirements for weight loss or maintenance. Facilities that offer nutritional counseling can add this very valuable assessment tool for only a slight increase in cost.
The MAX delivers fully analyzed results for the non-technical user. It includes the additional measurement of CO2, allowing you to see Respiratory Exchange Rate (RER) during exercise. This information will show your client at what heart rate they are burning fat most effectively and allow them to monitor fat burn in real time when utilizing the CardioCoach app.
The PRO delivers gas exchange information for the user who wants to see detailed data, analyze results, and customize interventions. Designed for the experienced user, the CardioCoachPRO is performance testing at its finest.
CardioCoach™
-
VO2 Max & Sub-Max
AT, AeT, Peak VO2
Precise heart rate zones
Calories Burned during exercise
Self-Calibrating
Wireless heart rate pick-up
Wireless Tablet Optional
Self-service O2 Sensor Replacement
Ability to email results to client
Score to determine test quality
Extrapolated VO2 Max for better sub-max test options
Workload data recorded at each stage
Integrates with CardioCoach App for Workout Building Program
Carrying case included
CardioCoach Plus
-
VO2 Max & Sub-Max
AT, AeT, Peak VO2
Precise heart rate zones
Calories Burned during exercise
Self-Calibrating
Wireless heart rate pick-up
Wireless Tablet Optional
Self-service O2 Sensor Replacement
Ability to email results to client
Score to determine test quality
Extrapolated VO2 Max for better sub-max test options
Workload data recorded at each stage
Integrates with CardioCoach App for Workout Building Program
Carrying case included
RMR (Resting Metabolic Rate)
Customizable caloric intake recommendations
Dual differential pressure sensors for increased low flow accuracy

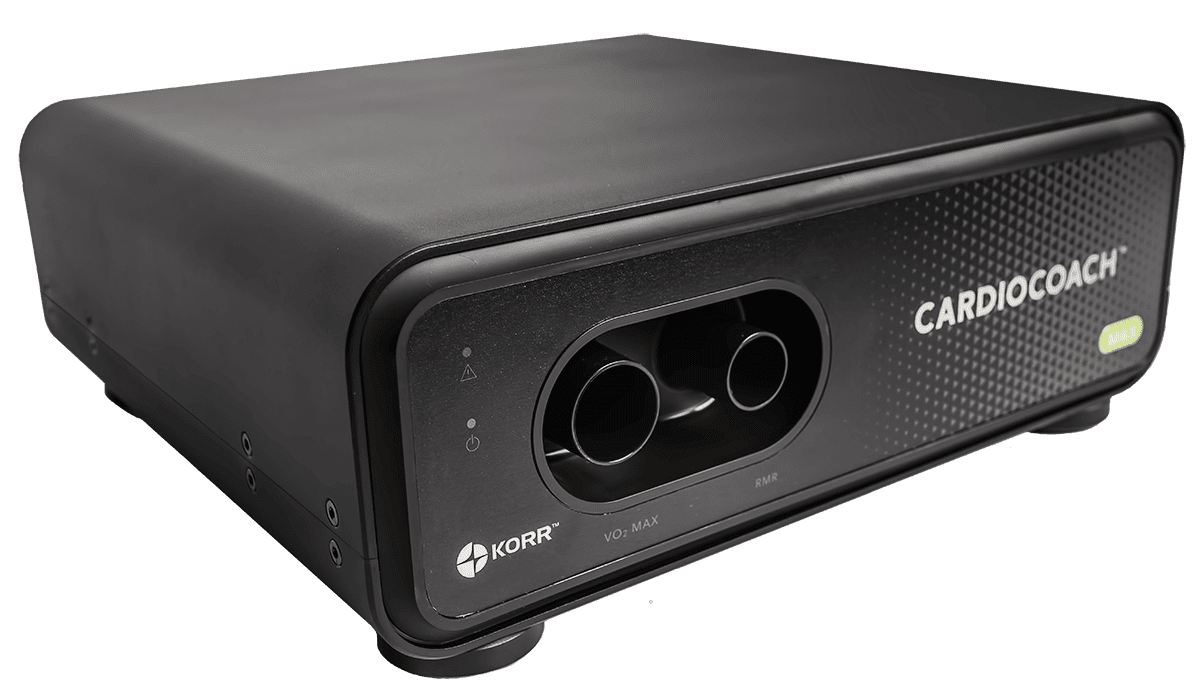

CardioCoach Max
-
VO2 Max & Sub-Max
AT, AeT, Peak VO2
Precise heart rate zones
Calories Burned during exercise
Self-Calibrating
Wireless heart rate pick-up
Wireless Tablet Optional
Self-service O2 Sensor Replacement
Ability to email results to client
Score to determine test quality
Extrapolated VO2 Max for better sub-max test options
Workload data recorded at each stage
Integrates with CardioCoach App for Workout Building Program
Carrying case included
RMR (Resting Metabolic Rate)
Customizable caloric intake recommendations
Dual differential pressure sensors for increased low flow accuracy
RER (RQ) during exercise
Determines calories burned from fats/carbs during exercise
Integrates with ergometers such as Lode, Trackmaster
CardioCoach Pro
-
VO2 Max & Sub-Max
AT, AeT, Peak VO2
Precise heart rate zones
Calories Burned during exercise
Self-Calibrating
Wireless heart rate pick-up
Wireless Tablet Optional
Self-service O2 Sensor Replacement
Ability to email results to client
Score to determine test quality
Extrapolated VO2 Max for better sub-max test options
Workload data recorded at each stage
Integrates with CardioCoach App for Workout Building Program
Carrying case included
RMR (Resting Metabolic Rate)
Customizable caloric intake recommendations
Dual differential pressure sensors for increased low flow accuracy
RER (RQ) during exercise
Determines calories burned from fats/carbs during exercise
Integrates with ergometers such as Lode, Trackmaster
RER (RQ) at rest
Data analysis tools
Extended testing periods
Integrates with Moxy for SMO2 data
Data entry field for blood lactate
Integrates with SMART trainers
VO₂ Pretest Requirements
- Complete the Exercise Readiness Questionnaire (ERQ) or Participate Activity Readiness Questionnaire (PARQ).
- Dress in comfortable exercise attire.
- Refrain from exercise or endurance training for 24-hours prior to test.
- Avoid food, tobacco, alcohol, and caffeine for at least 3 hours before testing.
- Continue medications as usual.
- Exercise warm-up per usual routine.
Conduct a Test

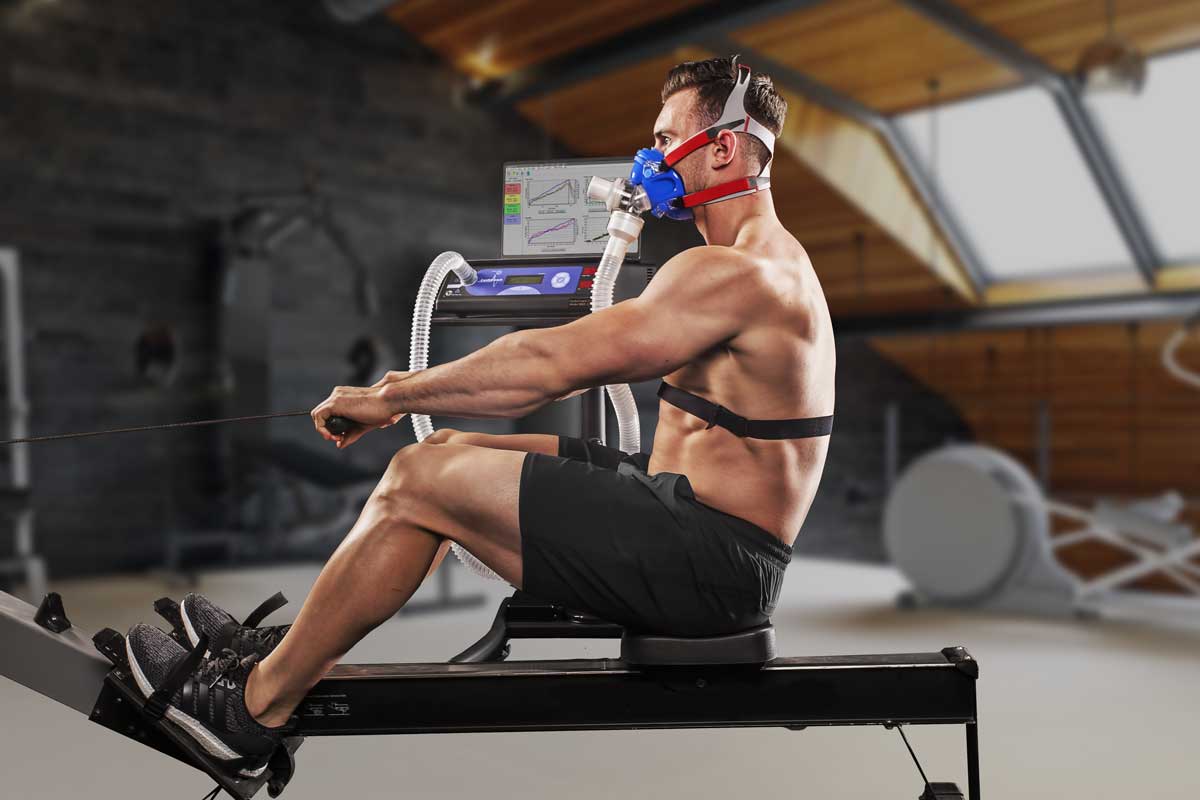

- The client puts on a mask and heart rate strap. The mask is connected to the CardioCoach™ device via the VO₂ hose.
- The client exercises on a stationary device such as a bicycle, treadmill, or stair stepper. They gradually increase their intensity over a period of 6 to 20 minutes until the CardioCoach™ indicates that the anaerobic threshold has been detected. At this point, the client may stop exercising and begin a cool down phase.
- The CardioCoach™ compiles the data, analyzes the results and will print a fitness profile in a simple, insightful report where exercise zones are identified. Trainers can further customize their client’s workout by uploading the results to the CardioCoach app.
CardioCoach Video:

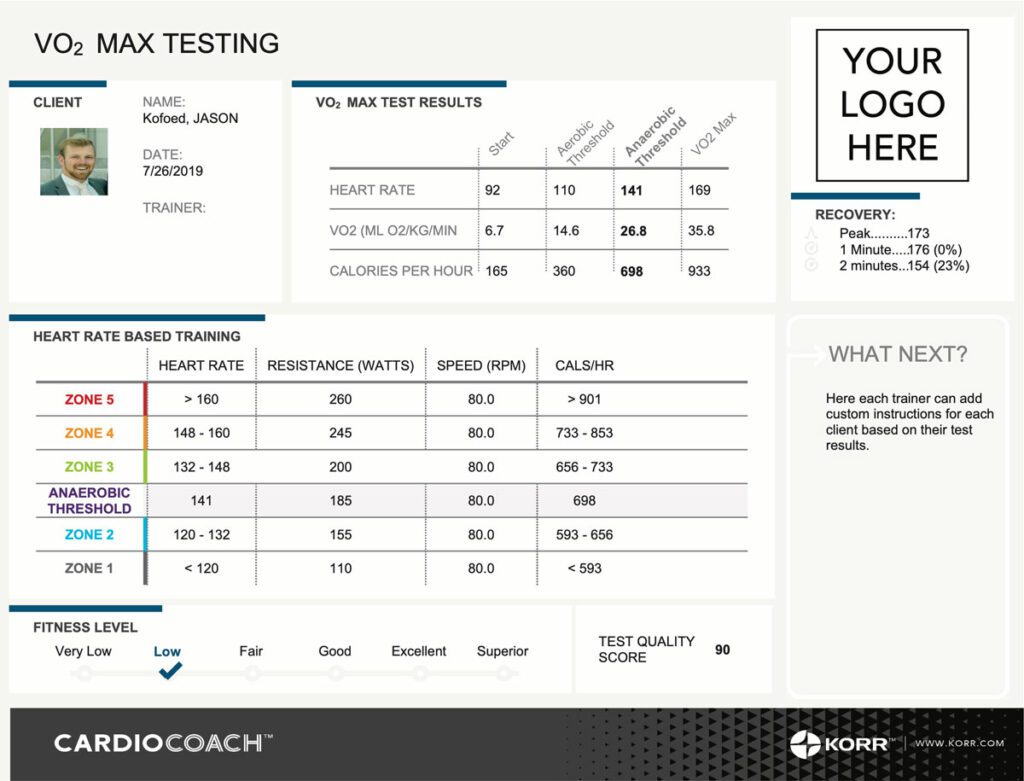

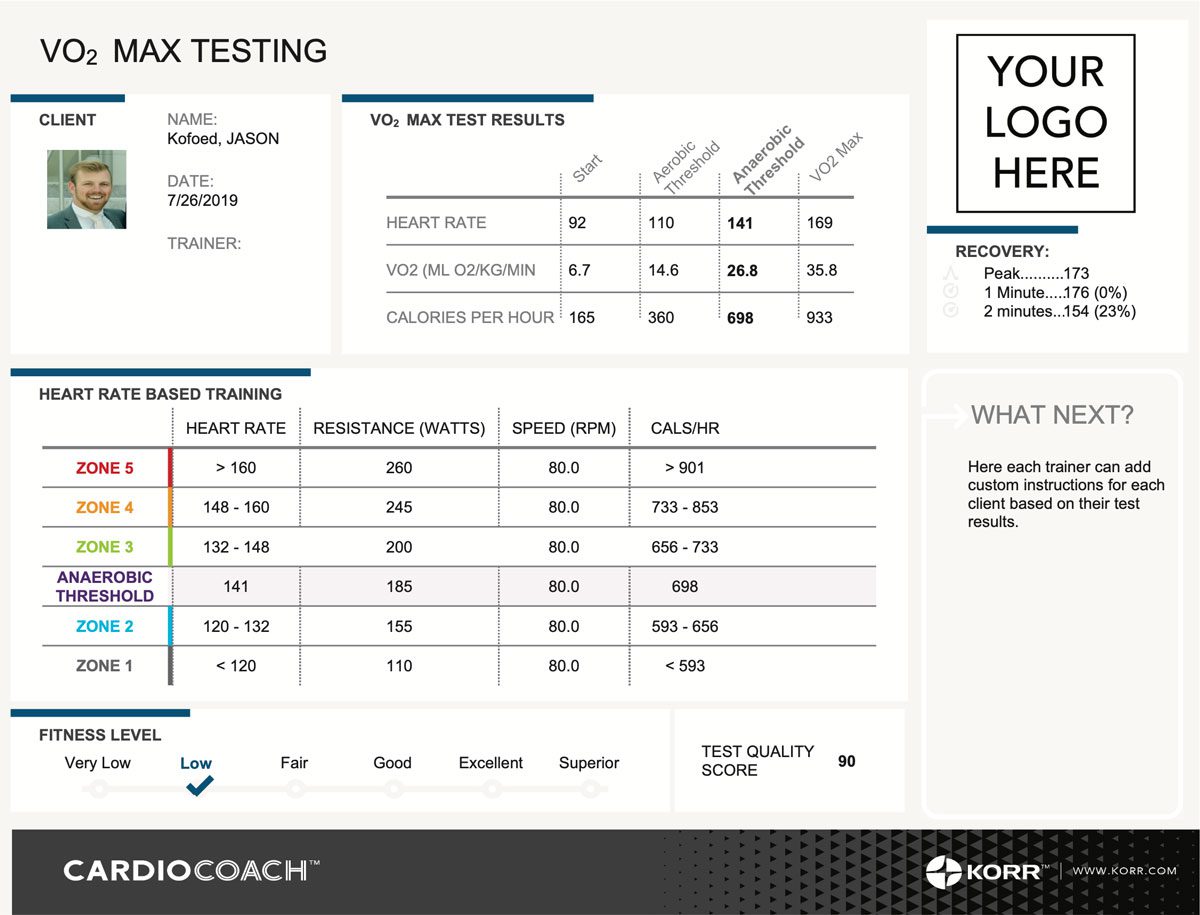

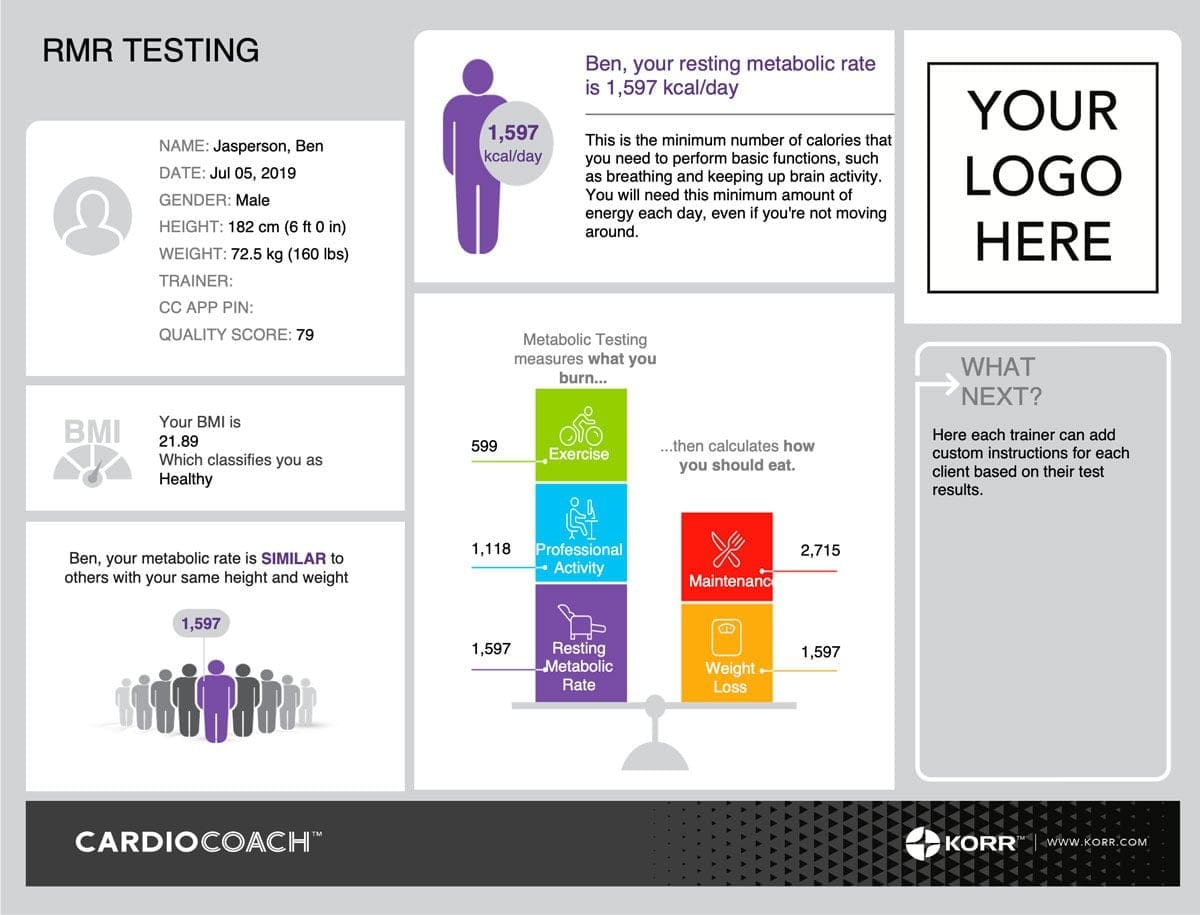

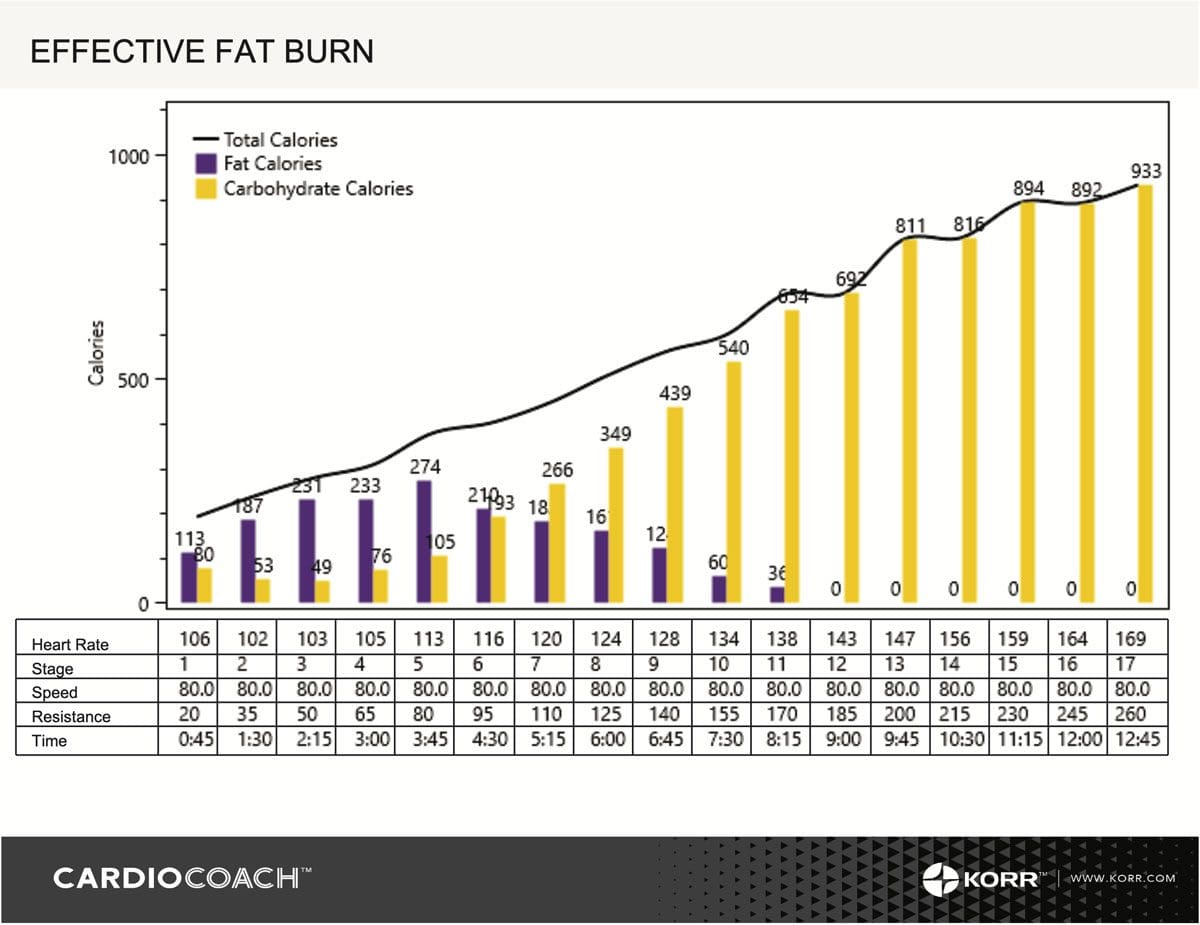

The Print Out
Click the button below to view/download the sample report print out
Sample Report PDFImprove Services
A complete VO₂ fitness test can give trainers the tools to set realistic goals and assess improvement
Many people are inefficient exercisers – they have no understanding of what heart rate, intensity or duration would best help them reach their specific goals such as fat burning, endurance training, or cardio conditioning.
VO₂ Max
An initial VO₂ Max test can clarify the precise target heart rates that will enable each individual to exercise more effectively, with less fatigue and fewer injuries. Periodic retesting provides motivating feedback as the fitness program progresses. Studies show that previously sedentary people training at 75% of aerobic power for 30 minutes, 3 times a week over 6 months increase VO₂ Max an average of 15-20%.
Anaerobic Threshold (AT)
Even though extensive training can sometimes cause an athlete to reach a plateau in VO₂ Max, he can still use his VO₂ Max test results to make further improvements in performance. This is accomplished as he pushes to increase anaerobic threshold (AT) and maintain that threshold for longer periods of time. This enhances both endurance and cardiovascular performance.
Calories Burned

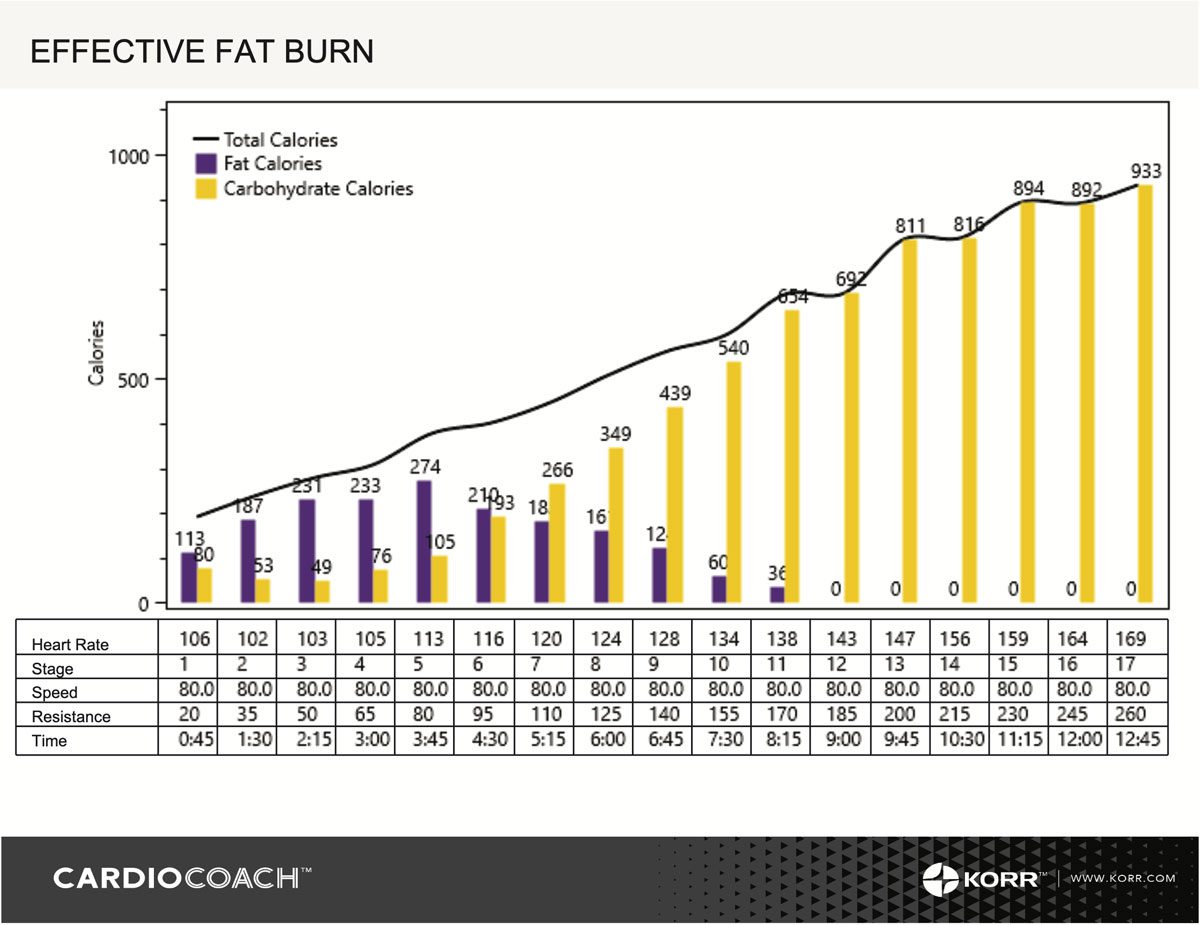

A VO₂ Max test determines the number of calories burned during every level of exercise. Additionally, CardioCoach PLUS, CardioCoachMAX and CardioCoachPRO measure a Resting Metabolic Rate. This is a scientific measurement of how many calories a person is burning during a day, a vital piece of information when designing a weight loss regimen.
Increase Revenue
Consider the following return on investment for a facility using a CardioCoach PLUS for both VO₂ and RMR testing. (All costs are estimated for purpose of illustration)
| CardioCoachPLUS | ||
|---|---|---|
| Year 1 | Year 2 | |
| VO₂ tests per year (avg 20 tests per month) | 240 | 240 |
| Fee per VO₂ test | $150 | $150 |
| RMR tests per year (avg 20 tests per month) | 240 | 240 |
| Fee per RMR test | $50 | $50 |
| Gross Proceeds | $48,000 | $48,000 |
| Staff fees ½ hour @ $20 per hour. 480 tests | $4,800 | $4,800 |
| Equipment costs, unit | $7,995 | 0 |
| Equipment costs, MetaBreather mouthpieces @ $725 per 100 pack | $1,740 | $1,740 |
| Equipment costs, service | 0 | $385 |
| Cost of operation | $14,535 | $6,925 |
| Annual Cash Flow | $33,465 | $41,065 |
| O₂ Sensor | |
| Type | Galvanic Fuel Cell |
| Accuracy | ±0.2% O₂ |
| Resolution | 0.01% O₂ |
| Range | 0 to 30% O₂ |
| Average Sensor Life | 24 months |
| Air Flow Sensor | |
| Type | Fixed-orifice Differential Pressure Pneumotach |
| Accuracy | ±2% of reading |
| Resolution | 0.01 LPM |
| Range | -40 to 500 LPM |
| Breath Rate | 5 to 50 breaths/minute |
| Tidal Volume | 200 to 9000 ml |
| Physical Dimensions | |
| Size | 15" x 15" x 4" |
| Weight | 7 lbs 14 oz (3.5 kgs) |
| Accuracy VO2 Max | |
| R value | 0.94 |
| Percentage error | 3% |
| CO2 Sensor (CardioCoach CO2 only) | |
| Method | Non-dispersive Infrared Absorption |
| Calibration | 3-point calibration |
| Respiration Rate | 150 bpm |
| Measurement Range | 0-76 mmHg |
| Accuracy | ±2 mmHg plus ± 5% of reading |
| Resolution | 1 mmHg |
| Flow Rate | 50 ml/min ± 10 ml/min |
CardioCoach
CardioCoach PLUS
CardioCoach MAX
CardioCoach PRO
CardioCoach™ Frequently Asked Questions
What type of exercise equipment is used?
Any type of cardio equipment that allows you to perform a graded exercise test taking your client to a maximum heart rate. Most often a treadmill or stationary bike is used.
Do you have to manually calibrate the equipment?
CardioCoach™, and all other KORR™ measurement devices, auto calibrate. It is important to note that KORR devices calibrate to temperature, humidity, and barometric pressure, making them both simple to operate and highly accurate.
The CardioCoach will need the oxygen sensor replaced every 20 to 24 months.Units purchased after August 2019 will be able to perform this service in their own facility by ordering the sensor from KORR directly.Older CardioCoach units are required to be sent to a KORR certified service center for replacement of the Oxygen sensor and re-calibration. Currently, service centers are located in Salt Lake City Utah USA, Sydney Australia, and Athens Greece.
Is a computer required?
A computer is required to run the CardioCoach software.KORR includes a laptop pre-loaded with CardioCoach software in the QuickStart kits .
Is certification required to operate the machine?
No certification is required. With its simple user interface, anyone can learn to operate the CardioCoach™ in just minutes.
Does it measure CO₂?
The CardioCoach™ measures oxygen consumption only, providing measurements of Peak VO₂, aerobic threshold, anaerobic threshold, and VO₂ Max. For those desiring RER (information about fats versus carbs burned during exercise), a CO₂ measurement is available with the CardioCoach™ MAX unit.
Is the equipment durable?
The unit comes in a steel casing, so it will not break or incur damage with normal use.`
